Yamaha R15 details, specs plus lots of pics

One of the most awaited bike of the year Yamaha new YZF-R15 version 2.0 was launched today. There  was a lot of speculations of the bike getting 22Ps of power, ABS, price reduced and many more.. Some even were mistaken by the looks and though it was a 250cc bike.

Yamaha made an end to all the speculations when the company launched the Version 2.0 in Delhi.

First glance

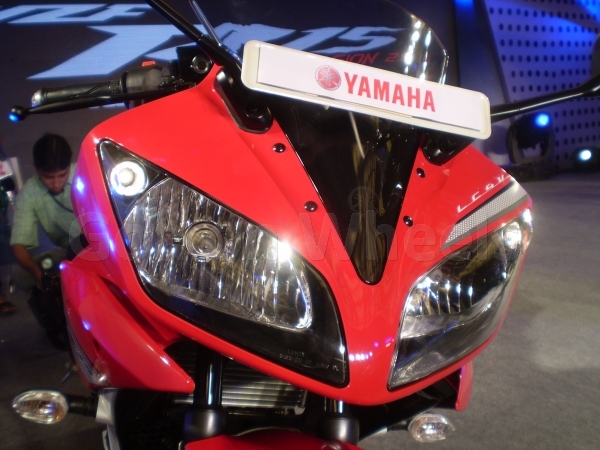

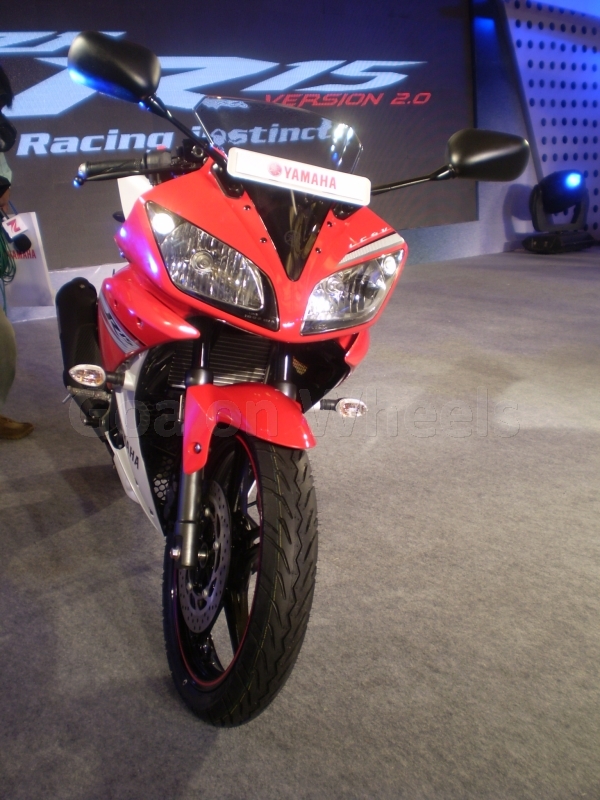

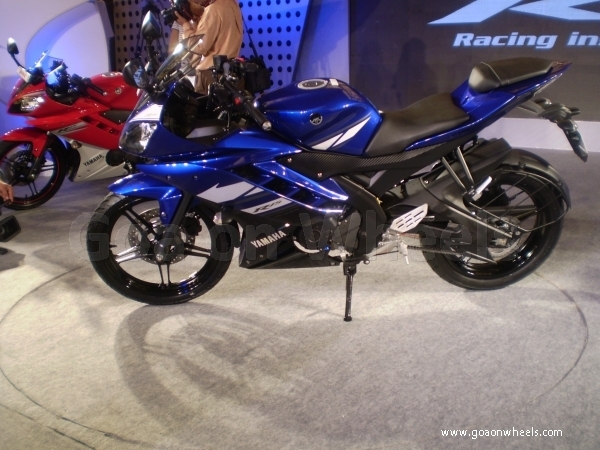

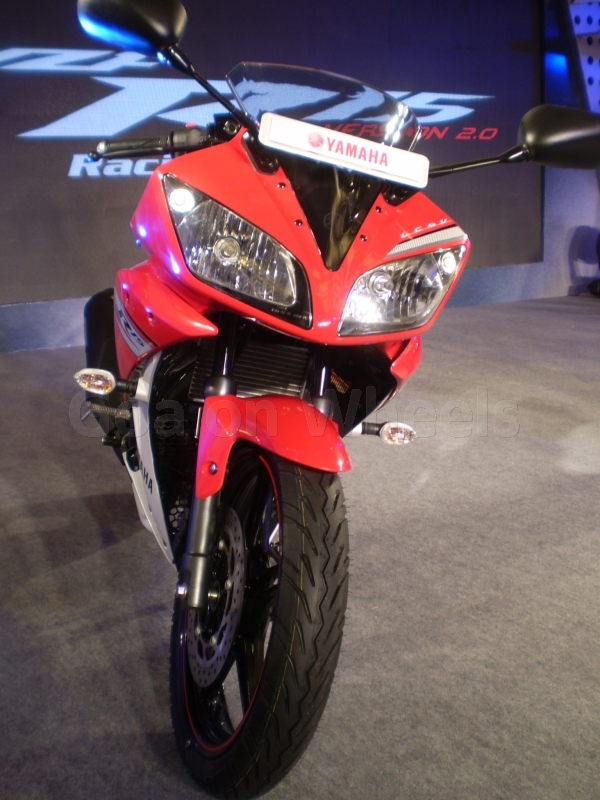

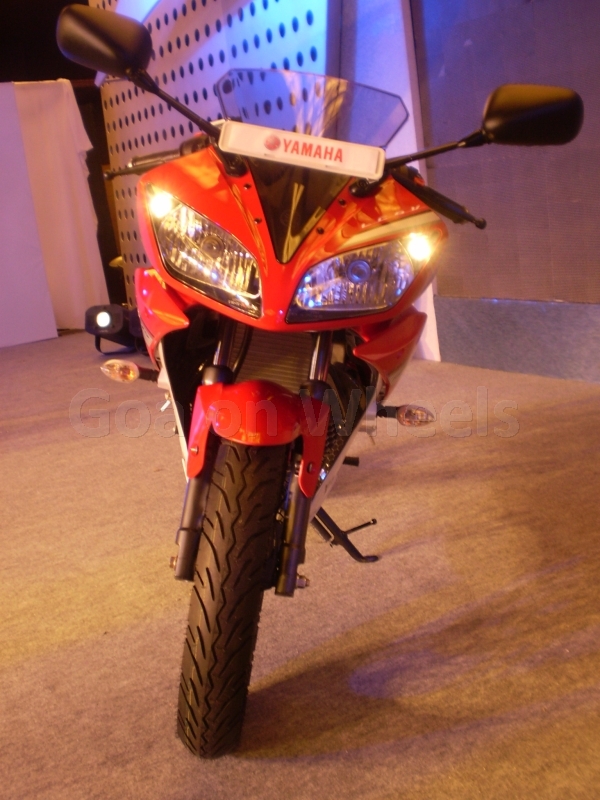

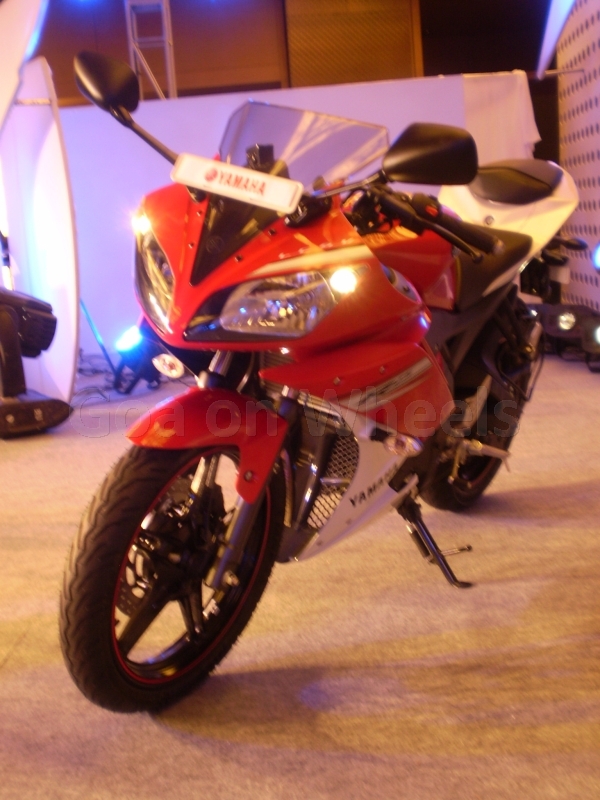

The R15 looks a lot bigger than the previous model and now looks more complete.  The bike seats on the same Deltabox Frame which forms the basis for riding comfort and handling performance and the confidence it gives while cornering. The design elements are borrowed from the supersport model YZF-R1 that is adapted from YZR-M1 MotoGP race machine.

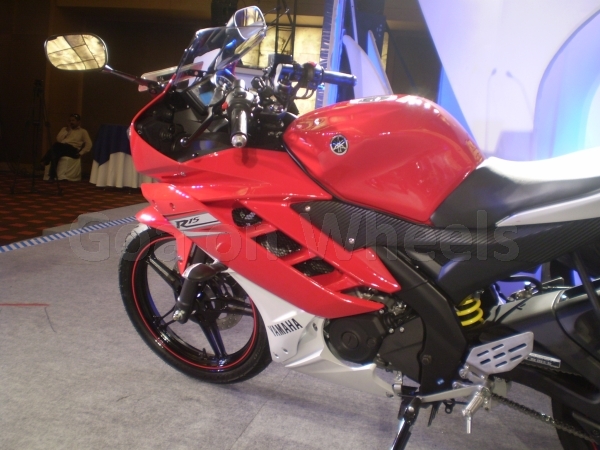

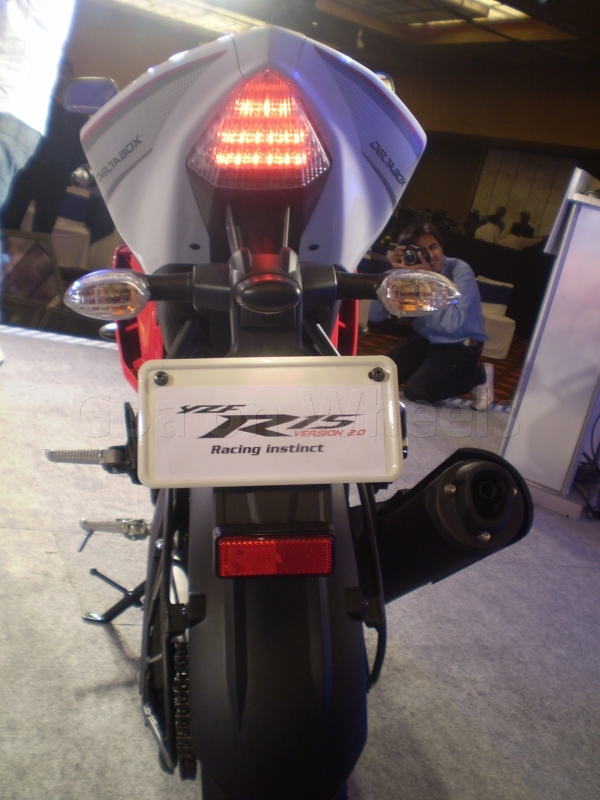

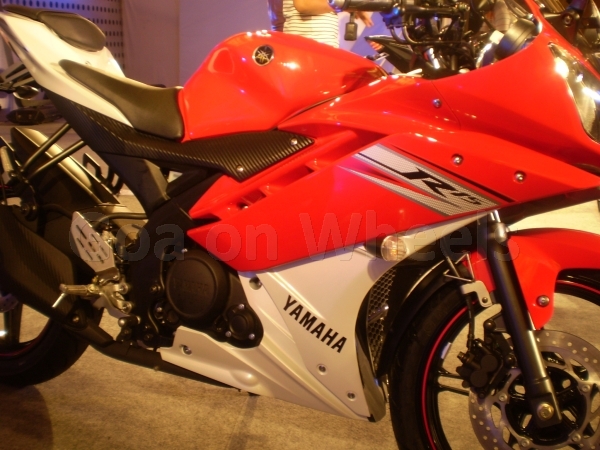

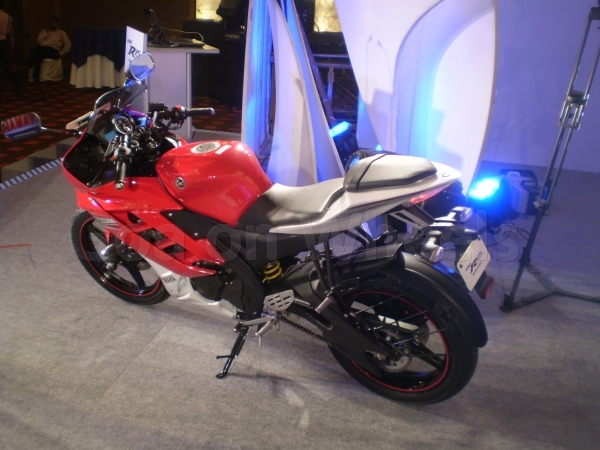

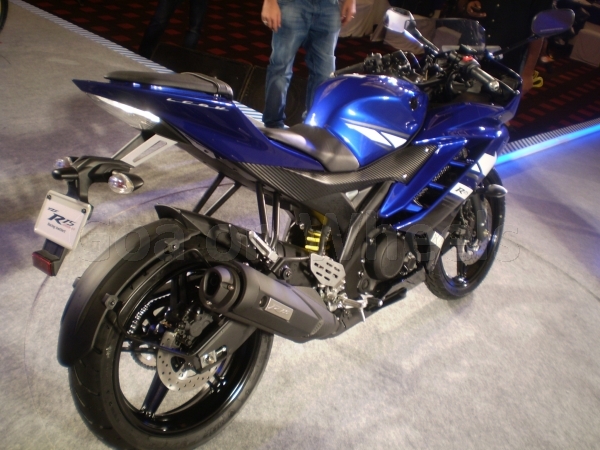

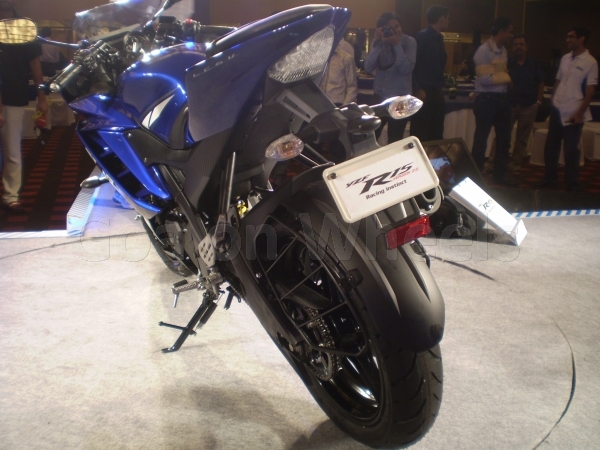

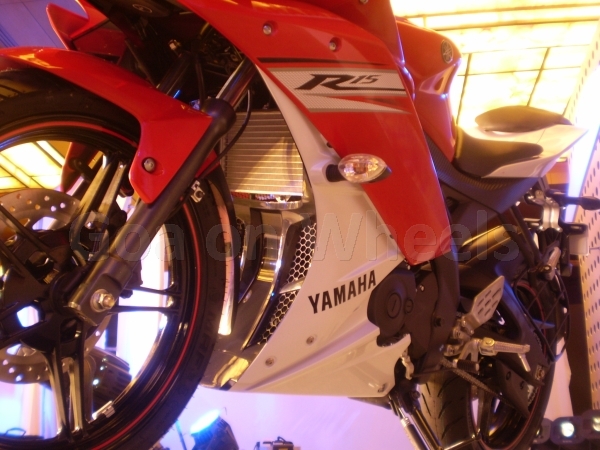

The bike has a good list of exterior changes which includes newly designed middle cowl, tail cowl, split seat, LED taillights, new exhaust pipe & silencer. There are also plastic elements which look like carbon fibre when viewed from certain angles. A R15 embossed in silver look plate is attached to the silencer which gives the long silencer some character.

According to Yamaha the newly designed middle cowl features improved aerodynamic performance at higher speeds – the aerodynamic resistance value is 4% better than that of the existing YZF-R15.

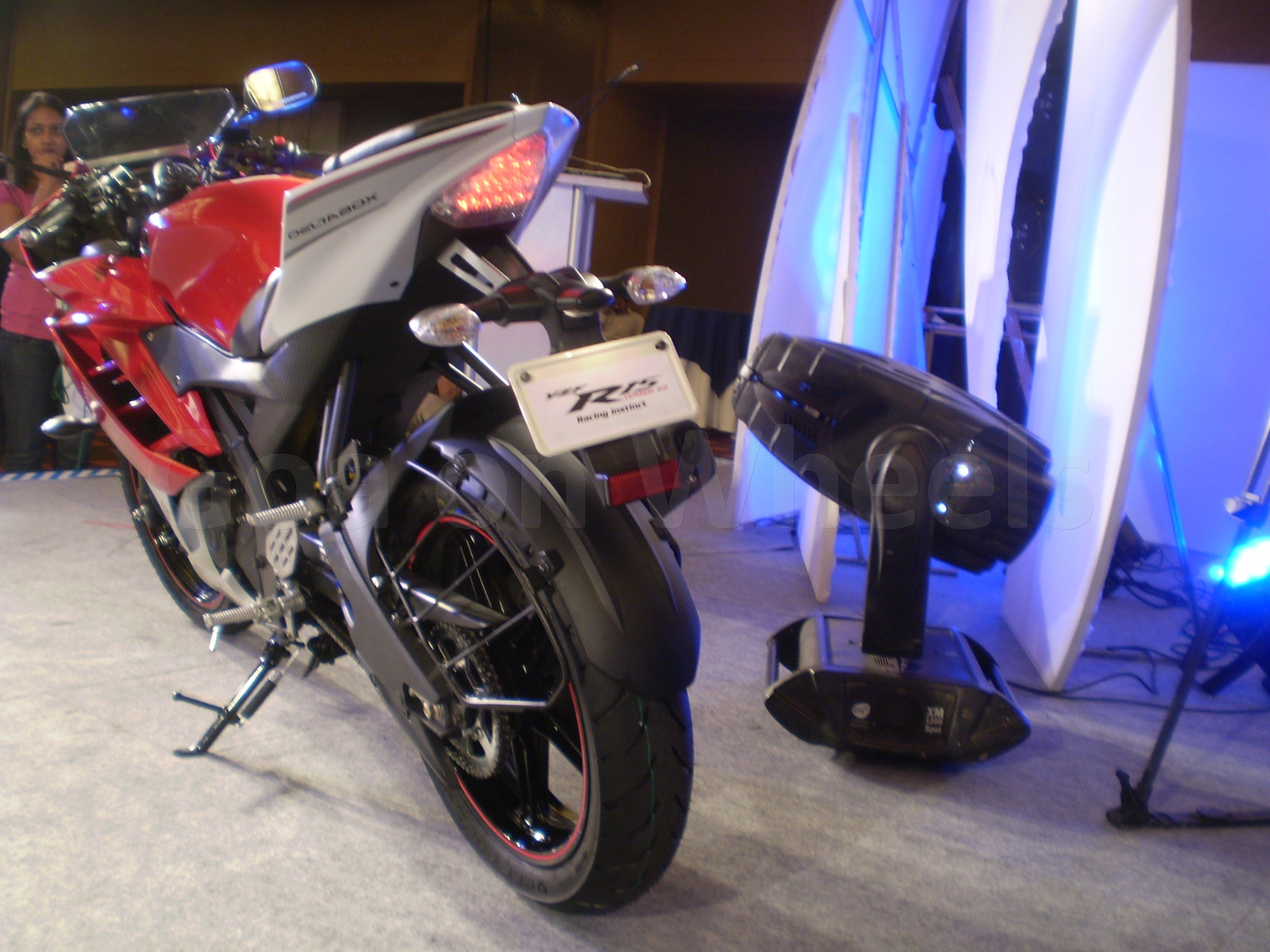

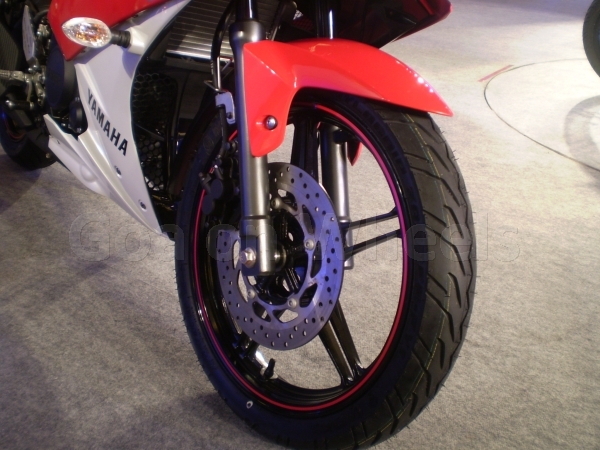

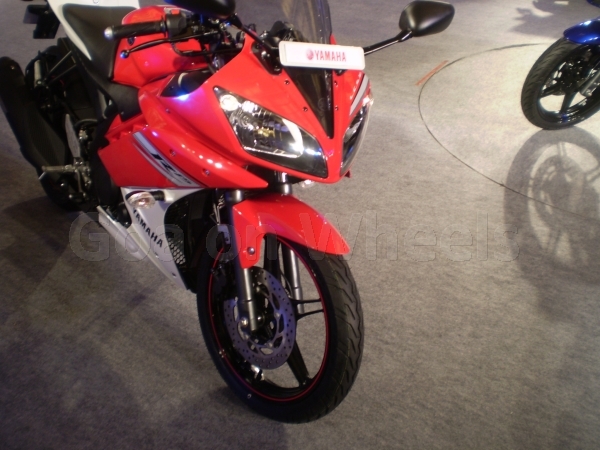

The bike now gets a 130mm tyre at the rear and 90mm at the front. So now one cannot complain of the thin tyres when the bike was first launched way back in 2008. The new 5 spoke design alloy wheels just look decent.

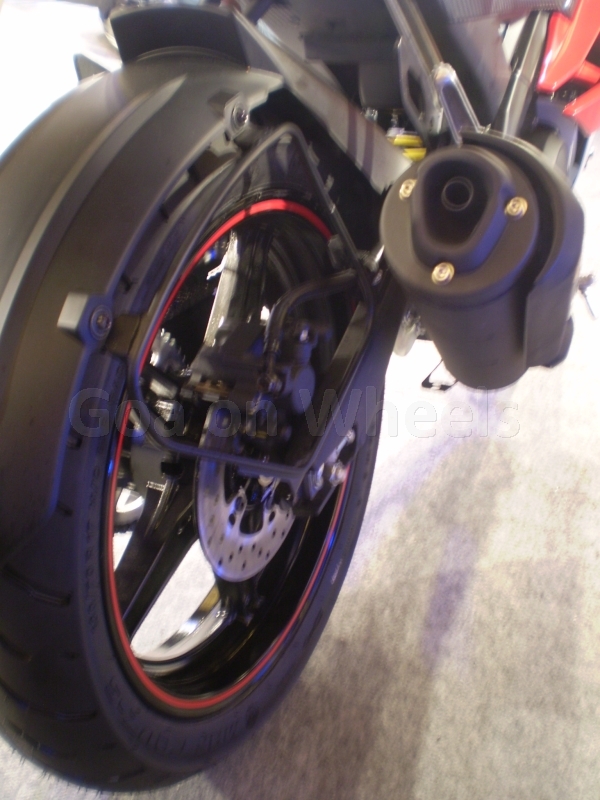

Another interesting feature the bike gets is larger 220mm diameter rear disc brake has been adopted to achieve a better balance with the new rear tire size and ensure good braking power.

The bike comes with the same 149cc engine with 17ps@8500 rpm. However the Torque has been upped to 15Nm@7500 rpm.

The machine has undergone changes in the specs of the Engine Control unit (ECU), drivetrain unit, a long aluminium swing arm. These mechanical changes have been tested which promises to deliver greater performance in circuit riding. We have seen a lot of spy pics of the R15 being tested.

Price

The new bike is priced at Rs. 1,07,000 (Ex-showroom, Delhi) higher by around 10,000.

Colour options

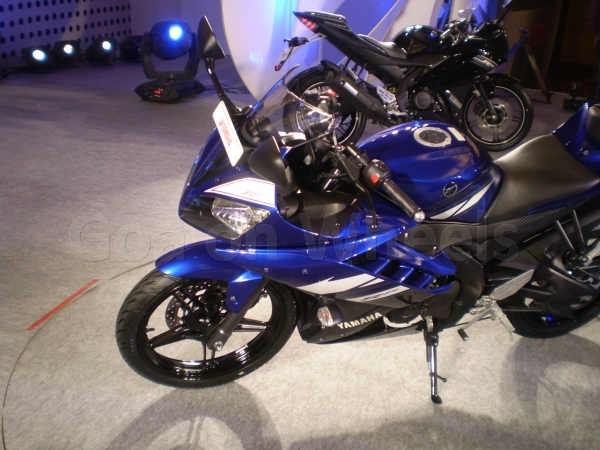

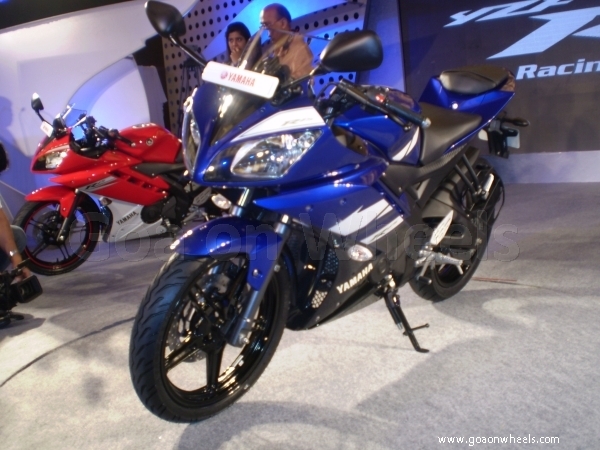

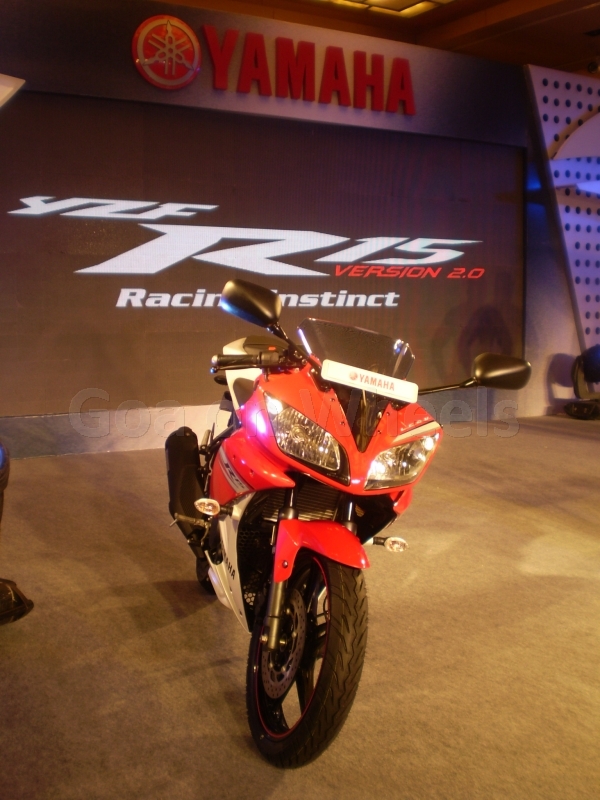

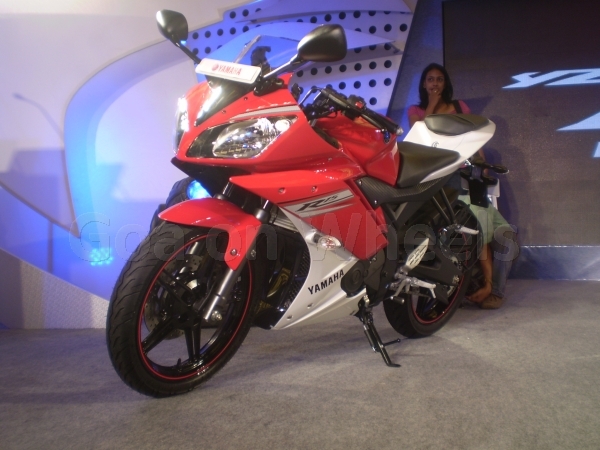

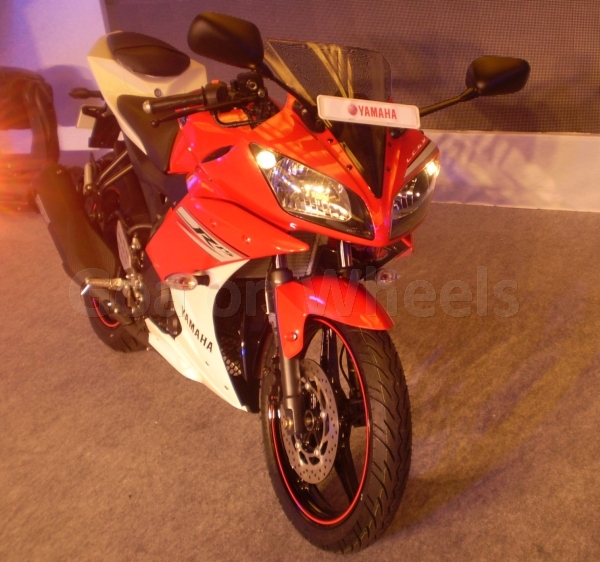

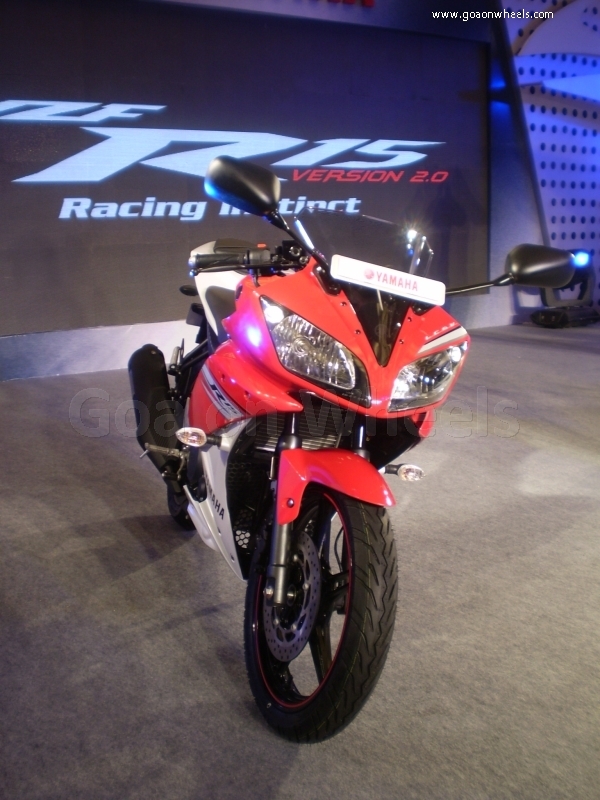

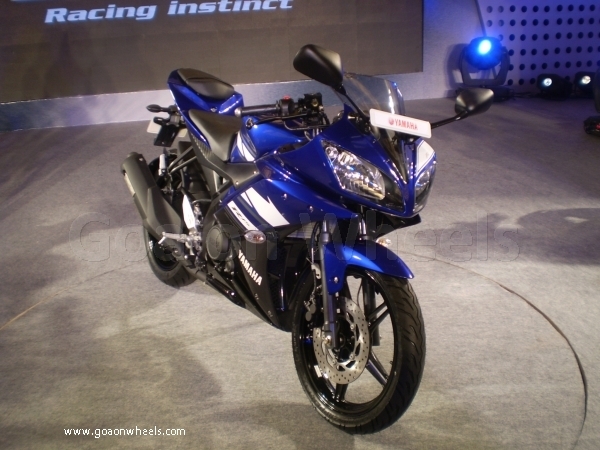

The bike will be available in Racing Blue, Midnight Black & Sunset Red colours.

Specifications

Engine type

Liquid-cooled, 4-stroke, SOHC, 4-valve

Cylinder arrangement

Single cylinder

Displacement

149.8cc

Bore & Stroke

57 × 58.7mm

Compression ratio

10.4:1

Maximum power

17PS/ 8,500rpm

Maximum torque

15N.m / 7,500rpmm

Starting system

Electric start

Lubrication

wet sump

Fuel tank capacity

12 liters

Fuel supply system

Fuel Injection

Ignition system

T.C.I

Primary / Secondary reduction ratio

3.042 / 3.133

Clutch type

Wet Multiple-disc

Transmission type

Return type 6-speed

Gear ratios

1st=2.833, 2nd?1.875, 3rd=1.364,

4th=1.143, 5th=0.957, 6th=0.84

Frame type

Delta box

Caster / Trail

26° / 98mm

Tire size (Front / Rear)

90/80-17 / 130/70-R17

Brake type (Front / Rear)

Hydraulic, single disc (Front / Rear)

Suspension type (Front / Rear)

Telescopic / Linked type Monocross

Headlight

Lo beam12V/35W X1, Hi beam12V/35W X2

Battery

12V, 3.5Ah (10H)

Overall length x width x height

1,970mm x 670mm × 1,070mm

Seat height

800mm

Wheelbase

1,345mm

Minimum ground clearance

160mm

Kerb weight

136Kg
